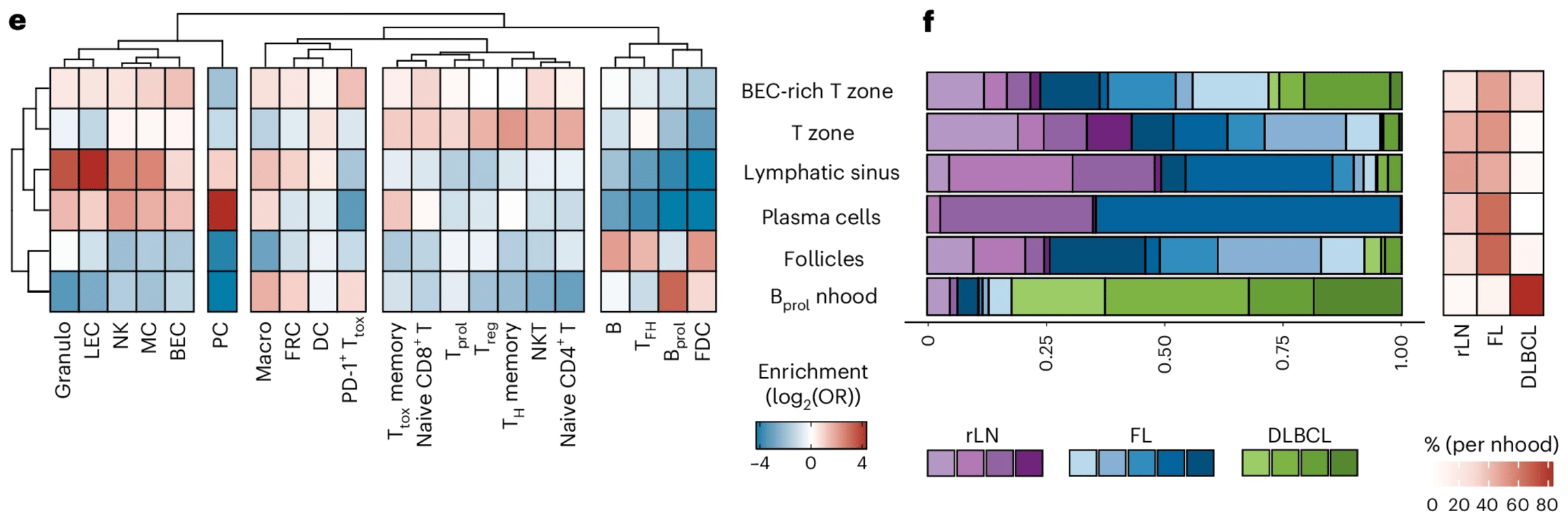

Several weeks ago, I recreated a relatively complicated figure that included four heatmaps and a dendrogram using the {patchwork} and {ggdendro} packages. This week I want to try something related. Check out this set of panels from a paper recently published in Nature Cancer titled, “Reprogramming of stroma-derived chemokine networks drives the loss of tissue organization in nodal B cell lymphoma”.

This figure is created from single cell sequencing data. I don’t really know much about how these data are generated or the ins and outs of how they’re analyzed. Regardless, several things caught my eye about this visualization. First, there are the three plots (not sure why they’re grouped into 2 lettered panels rather than 1 or 3). This tells me that this is a chance for more practice with {patchwork}. I like to practice new things! Second, the legend in the horizontal stacked bar plot in panel f likely uses some of the concepts I discussed in last Monday’s how-to video on using multiple legend keys for the same category. More practice! Third, they have two dendrograms - one of which appears to span 5 facets. Oooohhhh… something new to try!

How would we make a faceted dendrogram? Yes, there’s a {ComplexHeatmap} package that appears to do exactly this. Actually, that appears to be how the authors of this paper generated the image. But how would I create this effect with tools I already know?

You might recall from the last dendrogram I created how we used the dendro_data() function from the {ggdendro} package to extract the dendrogram data from the output of using the hclust() function that we used to cluster the data. From the output of dendro_data() we used the segments() function from {ggdendro} to obtain a data frame containing the starting and ending x and y coordinates for each segment in the dendrogram. Previously we had to transpose the x and y coordinates to make a vertical dendrogram. In this case we want a horizontal dendrogram so we can use the coordinates as they are. We saw how we could use geom_segment() from {ggplot2} to draw the dendrogram.

Here’s my idea: let’s manipulate the x and xend position values to add the gap. Looking at panel e, there are gaps between the 5th and 6th and 6th and 7th positions on the x-axis (there are other gaps too, but let’s look at these for this discussion). Basically, I can imagine using a case_when() statement where I’ll add some increment - maybe 0.5 - to the x-position for anything that starts or ends at 6 on the x-axis. We’ll add twice that increment to create the second gap so that anything with an x coordinate position between 7 and 10 will have 1 added to it. We can add 1.5 to create the third gap for things between 11 and 17, and 2 to anything at 18 or greater to create the fourth gap. The y-axis positions for the faceted dendrogram aren’t affected by the facets, so they’ll stay the same.

What about the heat map? Same idea. Remember we create the heat map by mapping one variable to the x-axis and another to the y-axis. In this case, we could create a variable that we’ll map to the x-axis that uses the same spacing we used in the dendrogram. Then we can use scale_x_continuous() to map the text labels to the x-axis positions. Then when we use {patchwork} we’ll have the leaves of the dendrogram aligned with the columns in the heatmap. Cool, eh?

The key to all of this for me was remembering that we’re mapping data to the x and y-axis. By modifying the x-axis positions we can create horizontal facets. Similarly, modifying the y-axis positions would create vertical facets.

​
