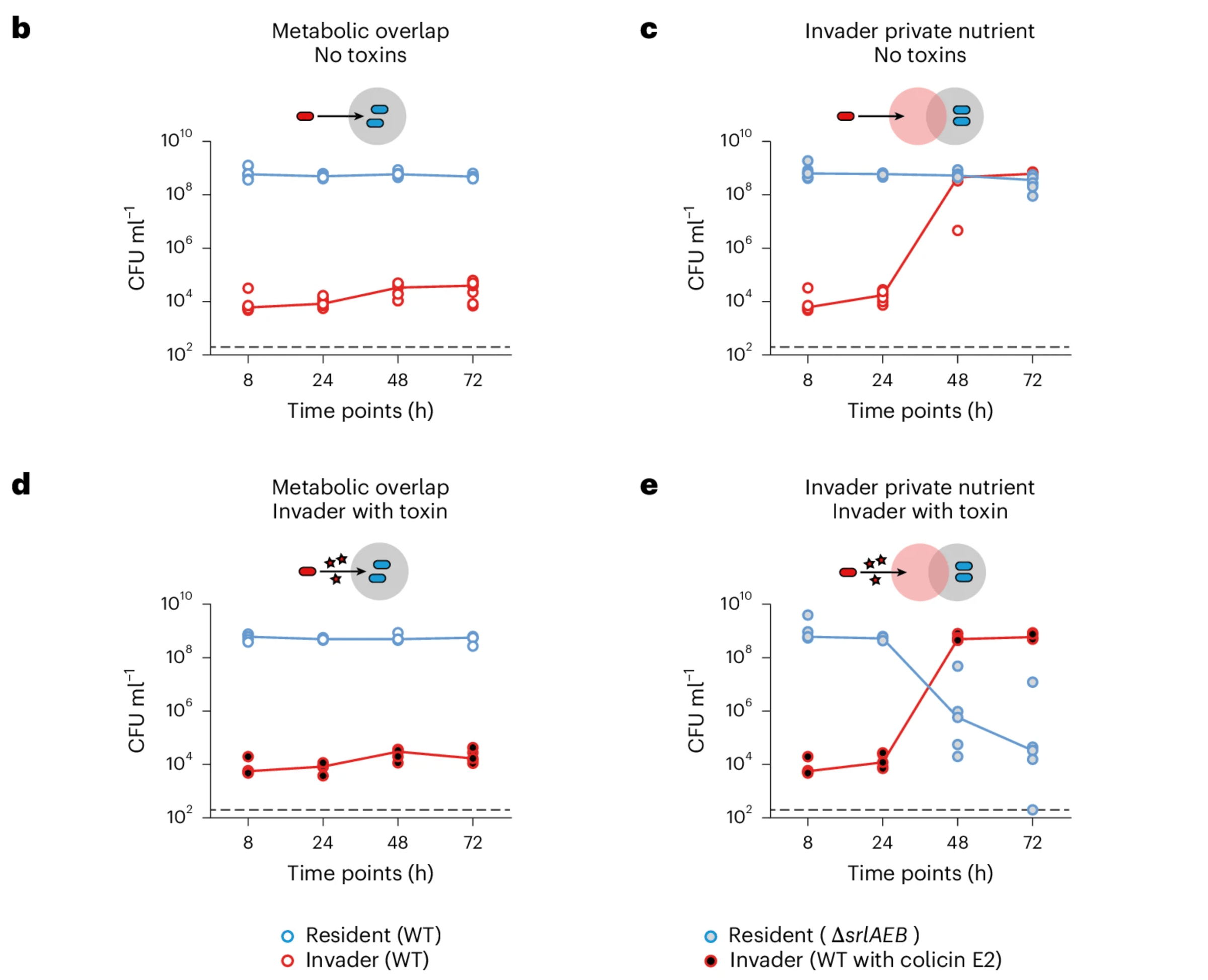

Last week I introduced you to a cool microbial ecology paper recently published in Nature Microbiology by Bakkeren and colleagues, “Strain displacement in microbiomes via ecological competition”. On Monday I provided a critique of Figure 2 from this paper. As you may recall, in last week’s newsletter I discussed panels f and g from the figure. I also recreated these panels in Wednesday’s livestream. Today I want to talk about how I’d make panels b through e:

They’re all the same basic panel each describing a different type of competition. What stands out to me about these panels is that they have a “cartoon” embedded in them to explain the panel’s experiment. I really thought this was slick. I especially liked how they used the same colors in the cartoon that they use for the points and the lines. It’s crystal clear to me that the red data is from the invading strain and the blue data is the resident strain. How would we make this in R? For the sake of conversation, let’s just think about panel c.

This is actually a scatter plot. We could use geom_point() to plot the data. The time point being sampled would be mapped to the x-axis, the density to the y-axis, whether the strain was the invader or the resident would be mapped to the color of the circle edge (symbol = 21), whether the strain was the wild type (WT) or the mutant (ΔsrlAEB) would be mapped to the fill color. As I mentioned in the critique video, I would actually prefer to use geom_jitter() to separate the points. It’s hard to tell but some the time points have 9 points and others 5. Jittering the data would make it easier to see the number of points. Another issue with the original plot is that the distance between the four time points is the same although the number of hours between 8 and 24 is not the same as between 24 and 48 or 48 and 72 hours. You could get the original appearance using scale_x_discrete(). I’d prefer to use scale_x_continuous(). Of course, because the y-axis is on a log10 scale, we need to use scale_y_log10().

How about the line through the points? One approach would be to create a separate data frame that has the median density at each time point and then use that as the data for a call to geom_line(). But that’s tedious. Instead, we need to learn about stat_summary(). With stat_summary() you can give it a fun argument that indicates the statistical summary to apply to the data - median - will work in our case. Then we need a geometry to represent the summary on the plot. We’ll use "line". This will get us a line connecting the various time points. We actually want to call stat_summary() before geom_point()/geom_jitter() so the line goes behind the points.

Looking at the y-axis you might notice some interesting numbers. The title and the text both have numbers in superscripts. We can get that using the sup HTML tag. For example, 10<sup>6</sup> will render as 10⁶ when we use element_markdown() from {ggtext}. You can use the label argument in scale_y_log10 to change 1e6 to 10<sup>6</sup>. Cool, eh?

Now that I’ve mentioned {ggtext}, let’s turn to the title of each panel. There are several packages that are useful for inserting images into {ggplot} figures. The easiest I’ve settled upon is to use {ggtext} with the <img> tag. In this approach, you could use labs() and set the title= argument to be the string you want with the <img> tag. Assuming we have the image stored as cartoon_c.png, I could use the following string to set the title for panel c:

​

labs(title = "Invader private nutrient
No toxins
")
​

The height value will scale the height of the image in pixels, so finding the right size will require some fiddling. Of course, we’ll need to use plot.title = element_markdown() in the theme() function to render the HTML. Cool, eh?

I’m planning on building this out in Wednesday’s livestream (9AM Eastern), so be on the lookout for that video. While I’m talking about livestreams… Can I tell you how much I’m learning by doing these? In each of these a viewer will make a comment like, “Why don’t you do it this way?” or “If you do it this way, then you can do this”. In each of these cases, “this way” never occurred to me. I never would have tried it “this way” if I had been recording and editing videos like I was a year ago. If I’m learning, then I’m sure others are too!

​

​
