This week I found a pretty unique plot type in a paper published in the journal Nature

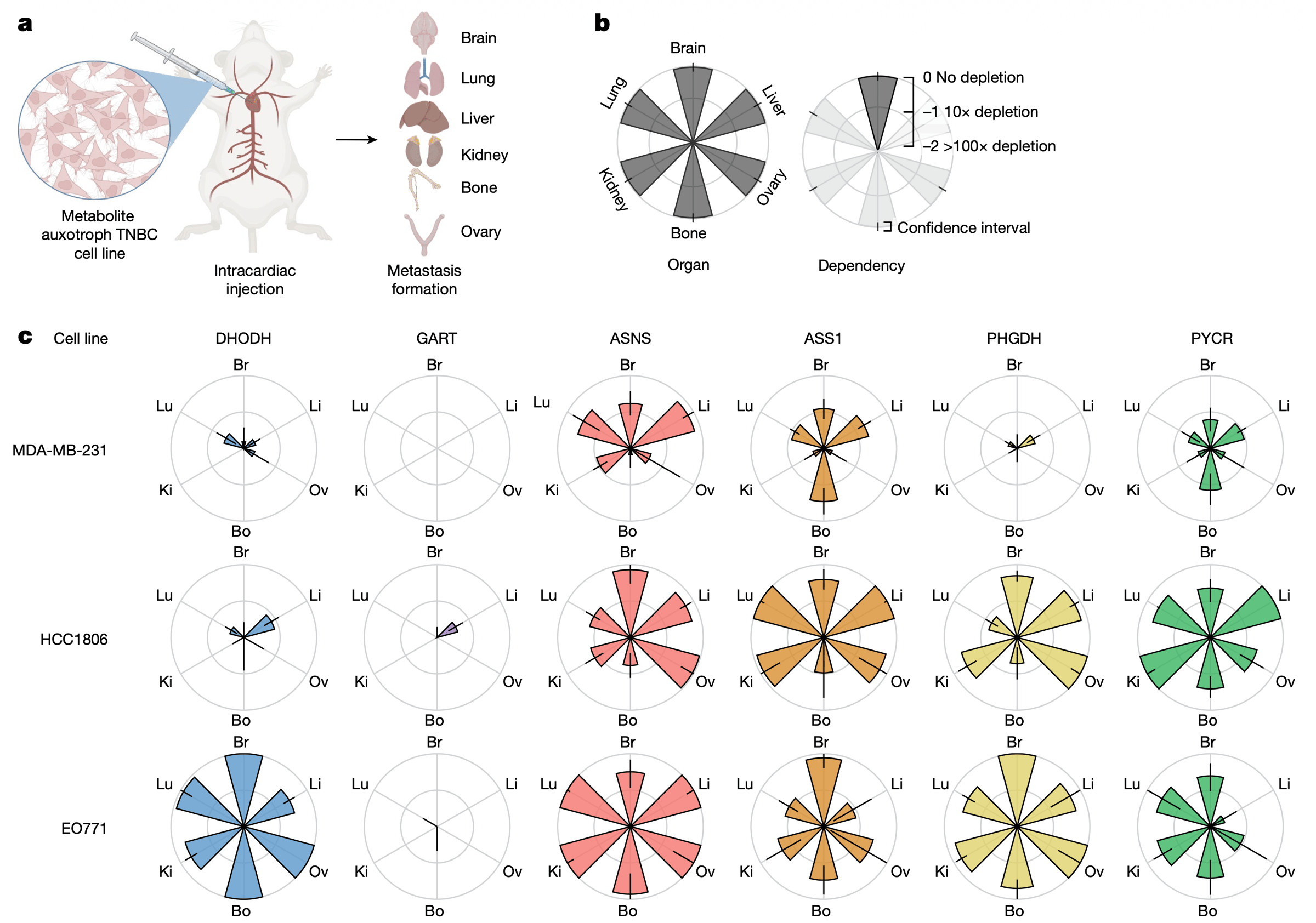

This is Figure 2 from the open access paper titled, “Nutrient requirements of organ-specific metastasis in breast cancer” by Keene Abbott and colleagues. I’m not totally convinced of what I think of this figure yet, so stay tuned for Monday’s critique video. This is what’s called a “petal plot” since each of the wedges coming out of the center looks like a petal of a flower.

I really like how they provide an interpretative key for the plots in panel b. They do the same type of thing in Figure 3. I like this because they are acknowledging that this is a novel plot type and want to help their audience interpret the figures correctly.

I was surprised to see that this figure was made using GraphPad Prism! My institution threatened (once again) to cancel our site license to Prism sending shock waves of panic through campus. Whether they intend to follow through on their threats this time remains to be determined. So, I naturally wondered how I’d go about making this plot in R. FOR FREE!

The most striking part of this figure are the petal plots. I know that a pie chart is a stacked bar plot in polar coordinates. I wondered whether a set of side-by-side bar plots in polar coordinates could get us the petal look. Sure enough it does! We can map the metastasis site (e.g., brain, lung, liver) to the x-axis, the level of depletion to the y-axis, and the gene (e.g., DHODH, GART) to the fill color. The bar plot can be generated using geom_col(). We can circularize the bar plots using coord_radial() to make the petal plots. The coord_radial() function has some arguments we might want to use to adjust the starting point so that the brain data is at 12:00 and bone is at 6:00 (we’ll likely also have to use factors to get the order of the sites, genes, and cell lines correct).

They also include 95% confidence intervals. We can get these as well using geom_errorbar() mapping the lower and upper confidence interval data to the ymin and ymax aesthetics. By default, geom_errorbar() will put a cap at the end of the error bar. To remove the cap and get the appearance seen in this figure, we can set width = 0.

Of course, there isn’t just one petal plot. There are 18. We can match their appearance by using facet_grid() putting the genes across the columns and the cell lines across the rows. There are a variety of arguments in facet_grid() and theme() that we’ll need to play with to get the facet titles positioned correctly.

What do you think of petal plots? They remind me of radar or spider or web charts. Regardless, I look forward to trying to recreate and possibly offer some improvements in next week’s livestream video. If you want to get a head start, you can download the data for free from the Nature website.

​
