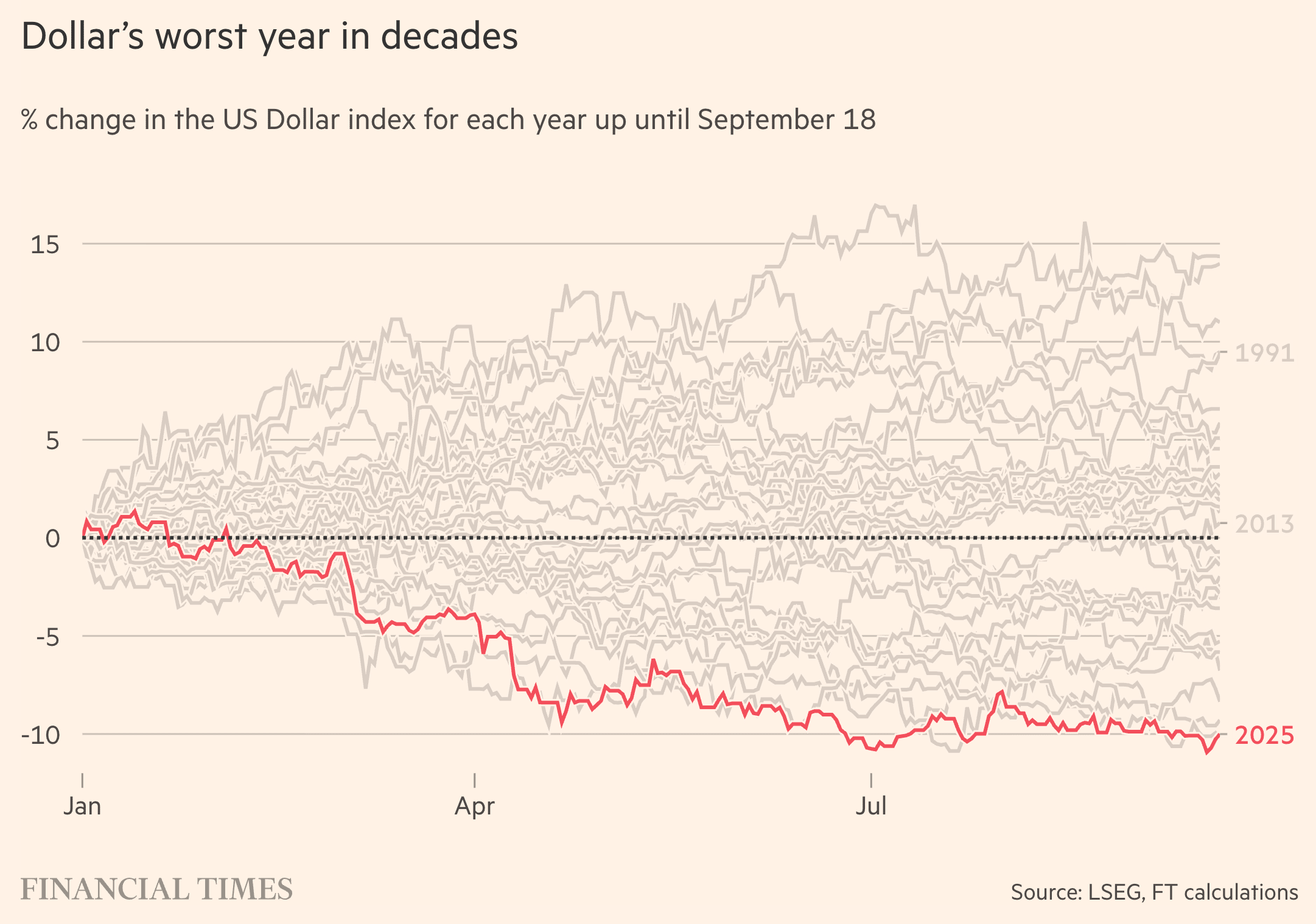

This week, I have a version of a figure that John Taylor sent my way. This comes from an article in the Financial Times. John sent me a dark mode version of what the FT published on their site. I’m going to try to recreate the “light” mode version. Maybe you all could take it as a challenge to make that dark version on your own:

Since I’ll present the critique on Monday, let’s focus on how I’d plan on doing this in R. First off, what is it? It’s a line plot where each line represents a different year. The y-axis is the percent change in the US Dollar Index for the year leading up to September 18th. The data for 2025 is shown in red.

To generate the plot, we’re going to need data. We’re told in the lower right corner that the source is “LSEG, FT calculations”. I’ve learned not to go back to the reporter for data. I’ve never gotten anything by that approach! What is LSEG? From their website, I learned, “LSEG is a leading global financial infrastructure and data provider. We play a vital social and economic role in the world’s financial system.” Eh. I’m not sure how I’ll get data out of them either. Let’s try googling “US Dollar Index”. Voilà! Clicking on the link for yahoo! finance we can see the US Dollar Index is an ETF that people can invest in.

This reminds me of a newsletter and video from a while back where I recreated a plot showing the change in the S&P500 over the first months of the current Trump administration. I was able to get the S&P500 data using the {quantmod} R package. Thankfully, I still have the code for that visualization and suspect I can adapt it to get the data for the US Dollar Index. I’m pretty sure I can get the data I want by using quantmod::getSymbols("DX-Y.NYB", auto.assign = FALSE). That will generate a data frame with the date, and the daily low, high, open, and closing price. I’d likely focus on the date and the closing price.

To generate the lines, I’d use something like geom_line(). On the x-axis I’d plot the date. This type of thing proves to be a bit tricky because most years have 365 days and some (like 2024) have 366 days. First, I’d get the month, day, and year as separate variables using the eponymous functions from the {lubridate} package. Then I’d create a new date column using a dummy year that is a leap year - 2024 - and the month and day. This new date column would be my x-axis. Then I’d use the year as the grouping variable. To generate the data for the y-axis, I’d group the data by year and calculate the percent difference from the first day of the year with data (n.b., January 1st is a holiday and in some years the 2nd or 3rd fall on a weekend). We’d do these calculations with a mutate() using the .by = argument. This should get us a plot pretty similar to what is shown in the FT figure.

Now to style it.

First, is the red line. I’d make a dummy variable like… is_this_year, which would be TRUE for 2025 and false for all other years. I’d then map is_this_year to the color aesthetic. I’d make 2025 red and the other years the gray color. Next, I notice that those lines aren’t normal geom_line() lines. They have a linen-colored edge to them that’s the same color as the background. How do we do this? Again, I’m reminded that we pulled this off in the past using the {ggborderline} package when I recreated the Economists Glass Ceiling Index figure. Nice. We can set the interior color to be red or gray and the border to be something like linen.

Second, the right-hand margin has three years indicated, 1991, 2013, and 2025. I do not know why those years were selected. They certainly aren’t the years I would have selected. Regardless, we want to recreate the figure. I’d first use xlim with coord_cartesian() along with clip = "off" to plot data (i.e., text) outside the plotting panel. Then I’d use geom_segment() to draw the segments from the end of the three lines to where I’d place the labels using geom_text(). What lines would you want to see highlighted? For sure, I’d want to see 2025. But I’d also maybe be interested in 2024 (last year), 2020 (pandemic), 2009 (Great Recession), 2001 (9/11). I’d also want to know what year ended the strongest.

Finally, the plot has some nice horizontal lines to help orient the viewer. They have horizontal grid lines under the data which is easy enough to do using the panel.grid.major argument in theme(). They also have a dotted black line on top of the data that crosses the y-intercept at zero. We could create this with geom_hline().

Along the way there’s some other styling we might think about like the font (perhaps Libre Franklin or Noto Sans, neither gets the “1” right) and the FT logo in the bottom left corner.

Let me know what you think!

​

​
