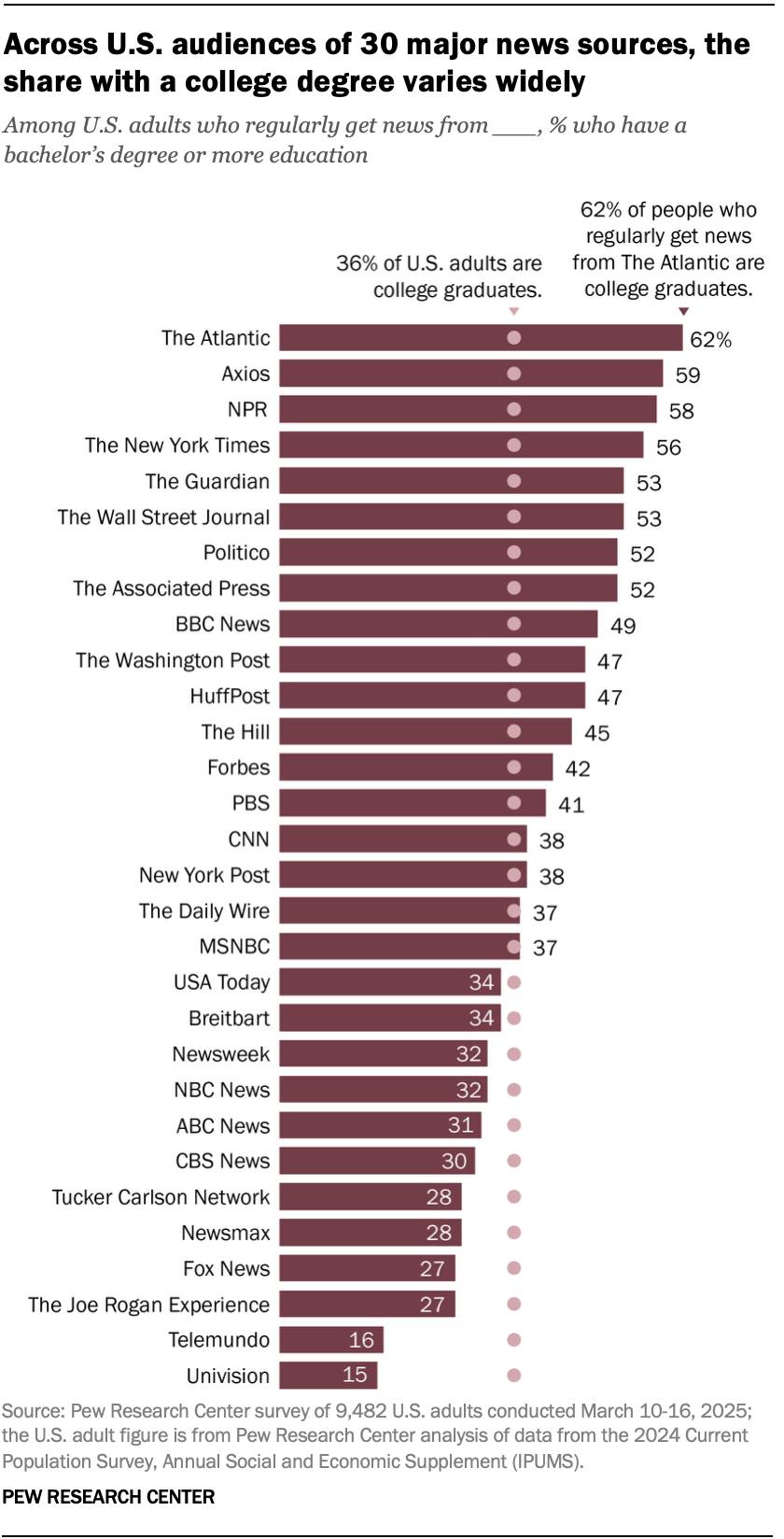

This week reader and livestream viewer Mike Parrott from the UK forwarded a plot to me from the Pew Research Center. The plot was part of Pew’s overall effort to look at US media consumption by sex, age, race, politics, and education. Mike was happy to see that The Guardian and BBC News are relatively popular among college educated people living in the US.

This plot reports the survey of 9,482 US adults that Pew surveyed back on March 2025. Part of the survey was to ask the people being surveyed where they get their news from and their level of education. One of my first questions when trying to recreate the data is whether I can get the data from somewhere that will allow me to bring it into R easily. Yes, all of the names and numbers are in the plot, but manually typing that would be a pain. I did find the data, but sadly, the data are embedded in a PDF. Why do people do this? It seems they want to be perceived as being transparent without actually having to be transparent.

Someone on a recent livestream mentioned that there are R packages to extract tables from PDFs. I forget which package they mentioned. A quick google search found a few options. First is {tabulizer}. Sadly, it appears to have been removed from CRAN back in 2021 because the package had problems. Next, I tried {pdftools}. That got me the raw text. I think I could parse the text to create a tibble using tools from {stringr}. Finally, I tried using {tabulapdf}. But after trying for half an hour to install it (and its Java dependencies), I gave up. I think I’d either use {pdftools} or just copy and paste from the PDF. Ultimately, I’d like to have a column for the media outlet and a column for the percent of college graduates who get their news from each outlet. Looking at the PDF, I’m intrigued by the prospect of including the “high or less” and “some college” categories. But that would require designing a different visualization.

Back to the plot…

Clearly this is a bar plot with the axes switched from what we traditionally see. This is helpful because it allows us to more easily read the name of the news outlet than if the names were along the x-axis and the names rotated to prevent them from overlapping. I would use geom_col() mapping the media outlet to the y aesthetic and the percent of college graduates to the x aesthetic.

The next notable element of the plot is the percentages of college graduates. I’d use geom_text() to incorporate the percentages as the label. The x-axis placement would be interesting. I’d likely add a nudge factor depending on whether the percentage was greater or less than the 36% threshold of US adults who are college graduates. In addition, I’d change the font color depending on whether it is above or below the threshold.

Let’s think about the text elements for a moment. There are two bits of text that help orient the reader to the plot. The first is the “62% of people regularly…” blurb that helps us interpret the first bar. I think that’s pretty helpful. There’s a downward pointing triangle there to connect the text to the bar for “The Atlantic”. I’d probably put the text an the triangle in with annotate() using geom = "text" and geom = "point". The second blurb indicates that “36% of US adults are college graduates”. This I’d place using the annotate() functions that would be used to place the other blurb. I think these blurbs are pretty helpful, but I do wonder if they’re too wordy or if the blurbs are too close to each other.

Thinking about that second blurb, we see that the authors put a pink point at 36% on the x-axis for each media outlet. We could place that with geom_point() by setting the x aesthetic to 36. Alternatively, I would perhaps use geom_vline() to draw a vertical line at 36%. I would then move the corresponding blub the the right of the line and move it down to the bottom of the plot near “Newsmax” or “Fox News”.

Now that I’ve started thinking about things I would change, let’s think more about the data being displayed. The story makes a point that the visual is basically flipped for people with a high school diploma or less. For example, “Univision” and “Telemundo” are most popular among these folks and “The Atlantic” is not popular with them. I could imagine changing the plot to be a dot plot instead of a bar plot. For each media outlet, I’d place a different colored point for each of the three education categories across the x-axis. I’d like to put a vertical line to show the total percentage of US adults in each category where the color matches the color of the point. Maybe that would be too busy? If so, we could drop the “some college” population to focus on the extremes. What do you think?

​
